First assign all texture in blender to easy setting-up in unity3D.

Field Meshes using shader "fox3DDF_Blin_LayerBl_SubNorm_MaskUV"

Material Properties

1. base texture
2. normal map from base texture
3. turf001_srm
4. turf001_lym
5. turf001_lbm
6. turf001_sb_nrm


This value extracted from field fmdl default KONAMI, but you can set manually or skip this.

MatParamIndex_0: {r: 53, g: 0, b: 0, a: 0}
URepeat_UV: {r: 1, g: 0, b: 0, a: 0}
VRepeat_UV: {r: 1, g: 0, b: 0, a: 0}
SubNormal_Blend: {r: 1, g: 0, b: 0, a: 0}
URepeat_SubNorm_UV: {r: 0.056, g: 0, b: 0, a: 0}
VRepeat_SubNorm_UV: {r: 0.056, g: 0, b: 0, a: 0}

Glass Meshes using shader "pes3DFW_Glass"

Material Properties

1. base texture
2. normal map from base texture
3. reflection texture


This value extracted from glass fmdl default KONAMI, but you can set manually if needed.

MatParamIndex_0: {r: 54, g: 0, b: 0, a: 0}
ReflectionColor: {r: 101, g: 0, b: 0, a: 0}
GlassColor: {r: 255, g: 0, b: 0, a: 0}
GlassRoughness: {r: 0.8, g: 0, b: 0, a: 0}
GlassFlatness: {r: 0.98, g: 0, b: 0, a: 0}
PCBoxCenter: {r: 0, g: 80, b: 0, a: 1}
PCBoxSize: {r: 280, g: 250, b: 250, a: 1}



Pitch Line Alpha Properties Texture use shader (fox3DDC_Blin)

1. line_alp
2. line_nrm
3. line_srm


Base Pitch Properties Texture use shader (pes3DDF_Pitch2019_V2)

1. pitch_alp
2. turf_nrm
3. turf_srm_alp
4. turf_bsm_alp_rgba32
5. pitch_detail_alp
6. turf_withers
7. none (unknown)
8. pitch_specular_mask


Mesh Group Properties

Pitch Line Alpha Element
Alpha = Decal
Shadow = Shadow

Base Pitch Element
Alpha = Parasite
Shadow = Shadow

Material & Texture info for TV

Material name "tv_large_c" for TVBox Large, "tv_small_c" for TVBox small

Use shader (pes3DFW_Constant_SRGB_Bill)


1. tv_dummy
2. tv_dummy
3. tv_bill_wrap_00



Mesh Group Properties

TVBox Element


Alpha = Glass
Shadow = Glass OMBS



All texture can be found in sourceimages

Tested on Unity 2017.3.1p1 and Unity 2018.2.7f1

FMDL Studio v2 Unity Package:

https://github.com/BobDoleOwndU/FMDL-Studio-v2/releases





Stadium template can be found here:

https://mega.nz/#!g3ZAjCxb!ZbPGq9rimlkcddvRXmIpdQx4mZAhPv7OQN0Q7DDfmAo

pass: evoweb



Pitch Template can be found here:

https://mega.nz/#!Y6ADFSAK!ypzAdFFmOfQWHaD7Fkn6RyBSZSj5xjqDEAqmHLilf18



Shader & Preset for TV
https://mega.nz/#!kqJzAYQZ!74fQtcdZ_Jsy66A4ZVvHZ5IkIOXCgCetGCjqyT5JCdY


PES Archive Tools
-Extract FPK/FPKD
-Compiling Fox2/Xml

https://mega.nz/#!A7BTiaQa!Px6x6UhrPwL75n4fy6nRwZksmMH2su6uFxMn7ekbHWU

pass: evowebonly



Credit: Atvaark








Link to comment
Share on other sites


  • Group:  Super Moderators
  • Content Count:  3,257
  • Reputation:   269
  • Achievement Points:  5,200
  • Solved Content:  0
  • Joined:  03/17/2011
  • Status:  Offline
  • Birthday:  07/13/1992
  • Device:  Windows



Setting-UP FMDL





Tutorial Export Stadium





Tutorial Export Pitch Mesh





Tutorial export TV

Tutorials making mesh glass soon.
Other tutorial soon will be add.

Link to comment
Share on other sites

  • 3 years later...

  • Group:  Members
  • Content Count:  3
  • Reputation:   0
  • Achievement Points:  20
  • Solved Content:  0
  • Joined:  12/16/2021
  • Status:  Offline

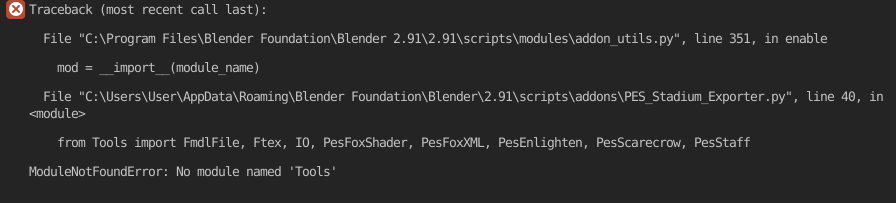

Moze neka pomoc bacio sam eFootbal PES2021 PES Stadium Exporter (v0.6.6b)  i ovo izlazi sve sam lepo uradio?


Link to comment
Share on other sites


  • Group:  Edit Team
  • Content Count:  143
  • Reputation:   177
  • Achievement Points:  4,100
  • Solved Content:  0
  • Joined:  04/06/2011
  • Status:  Offline
  • Birthday:  05/05/1993
  • Device:  Windows

8 hours ago, Asto233 said:

Moze neka pomoc bacio sam eFootbal PES2021 PES Stadium Exporter (v0.6.6b)  i ovo izlazi sve sam lepo uradio?


jel to novi kolega u "stadium editing!" na pomolu ??
